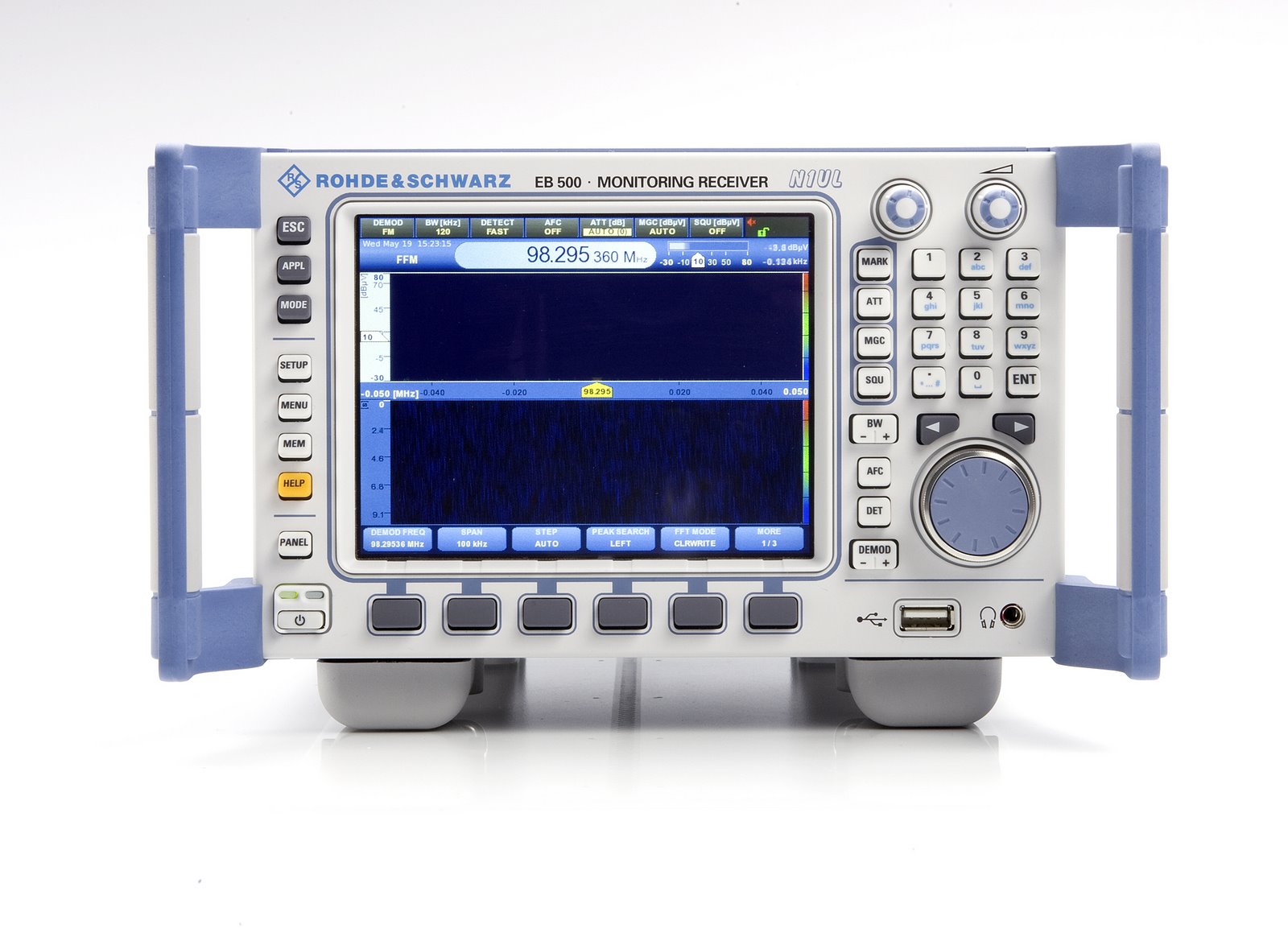

State of the art receiver EB-500  (9KHz to 6GHz)



EB-500


"This is currently the best performing 9 KHz to 6 GHz Software Defined Radio"
( designed by N1UL & team)

High receiver sensitivity, high signal resolution
Retrieval of information through demodulation and signal analysis in a compact system
Efficient operation via remote control
Convenient remote control with R&S®EB500-Control software
Future-ready investment
State-of-the-art FFT-based digital signal processing for high receiver sensitivity and detection of extremely weak signals, without any loss in processing speed
Significantly superior receiver sensitivity and signal resolution (compared with conventional analog broadband receivers)
Fast panorama scan with up to 12 GHz/s across the entire frequency range from 9 kHz to 6 GHz
1 kHz to 20 MHz IF spectrum and parallel demodulation with bandwidths from 100 Hz to 5 MHz
Spectrum and spectrogram (waterfall) display on receiver (model .03) or on PC via the R&S®EB500-Control software (model .02)
1 Gbit LAN interface for remote control and data output
Comparatively low power consumption for efficient DC operation, e.g. on a vehicle battery
Space-saving system integration due to ½ 19" width and three height units
Classification and analysis of signals up to 5 MHz bandwidth (analog and digital modulation) through evaluation of the I/Q data stream using the R&S®GX430IS software (in offline mode), for exampl
e
